LTS Low Temperature CO Shift Catalyst DZC-C66

DZC-C66 Low Temperature CO Shift catalyst can be widely applied to synthetic ammonia factory and hydrogen production plant using natural gas, oil field gas, naphtha and coal as raw material, especially to energy-saving synthetic ammonia factory under low steam-gas ratio and low temperature.
The reaction is summarized as below:
CH4 + H2O ⇌ CO + 3H2

PRODUCT DESCRIPTION

Typical physical and chemical property

Name	Low Temperature CO Shift Catalyst
Model	DZC-C66

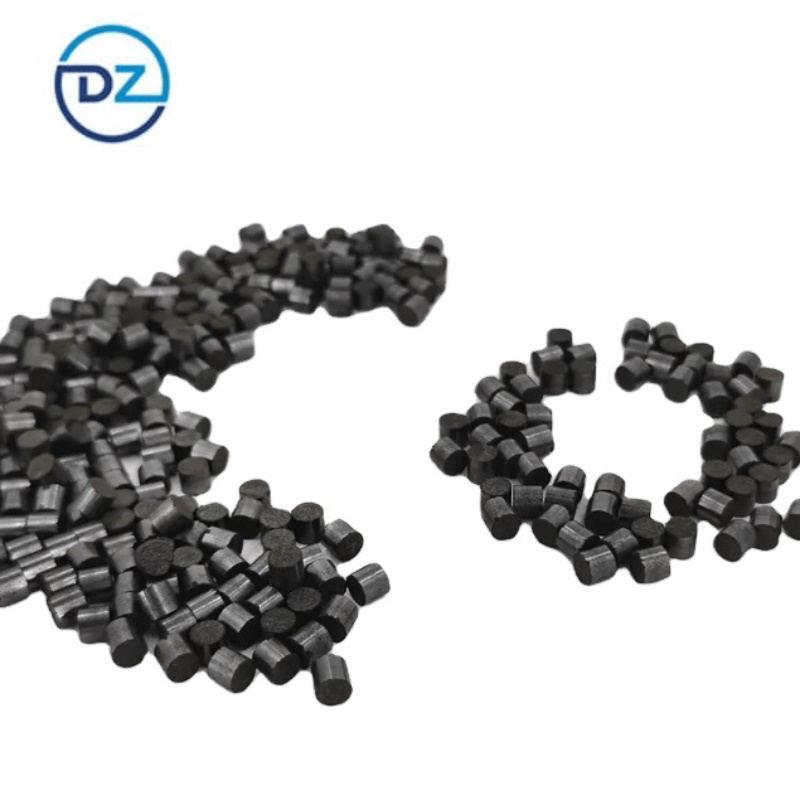

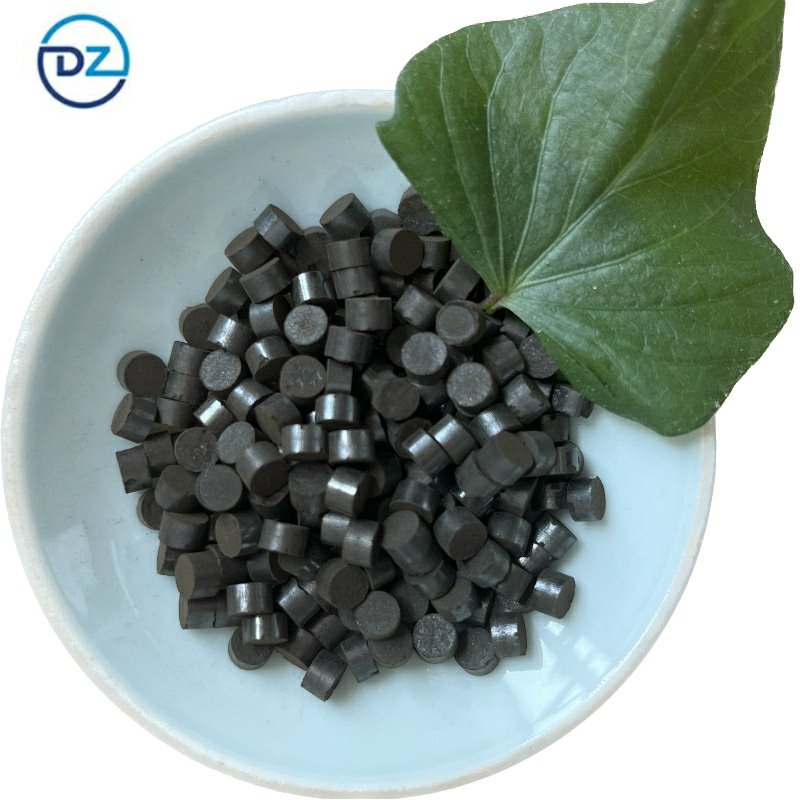

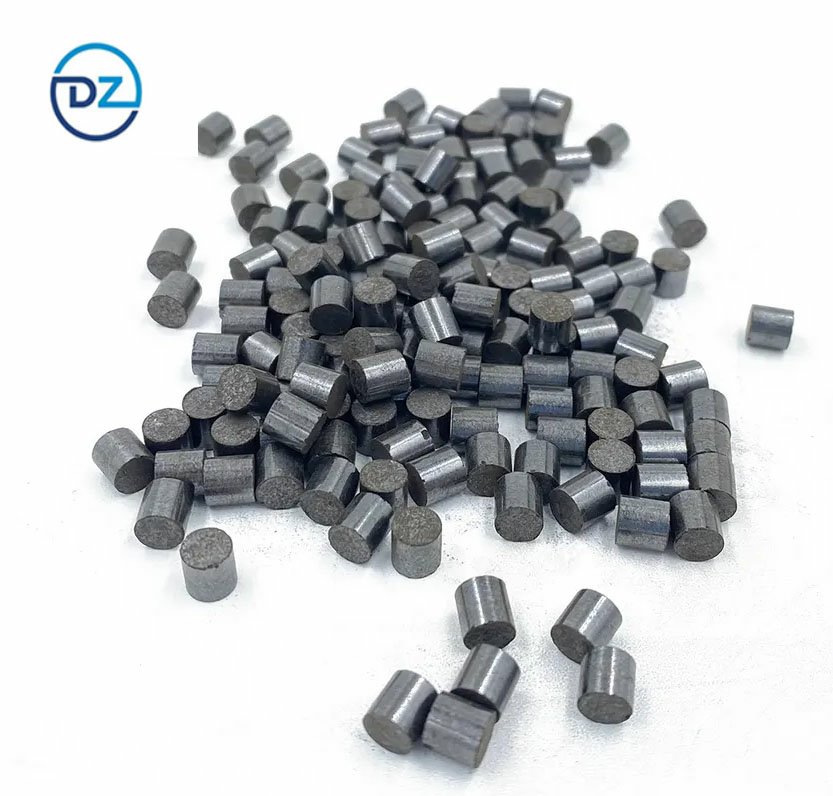

appearance	Black cylinder with metallic luster
Specifications ×Length (mm)	5±0.2 × 3±0.5
Bulk density (kg/l)	1.30±0.05
Lateral crush strength (N/cm)	≥160
Copper oxide(%)	40±2
Zinc oxide(%)	≥40.0
Al₂O₃(%)	9±1
Performance	CO conversion rate ≥93%
Conditions of Use	Operating temperature:180-240℃
	Operating pressure：≤5.0MPa
	Airspeed：≤3000h⁻¹（dry gas）
